Ammonium Perchlorate Recovery Plant

1
  •    Vikram Sarabhai Space Centre
  •      Ammonium perchlorate Experimental Plant (APEP), Aluva
  •      1 plant
  •     Space Division

Description

This is a Turnkey project consisting of design, fabrication, supply, testing and commissioning of a process plant for increasing the ammonium perchlorate yield by recovering AP from Crude Mother Liquor. Ammonium perchlorate is used as a solid propellant for ISRO's launch vehicles.

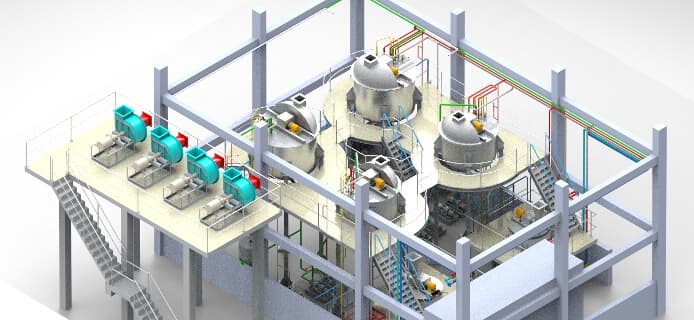

The process plant consists of:

  • Evaporators
  • Crystallisers
  • Pumps
  • Piping
  • Structural framework

The entire processing is controlled automatically by PLC.

Construction details

Materials:

  • Evaporators: Titanium Gr2
  • Crystallisers: SS316L
  • Structure: SS 316L

Critical aspects

  • Finite element analysis of the structure was carried out to ensure integrity under all loading conditions, including seismic loads.
  • Design and routing of piping was carried out for entire plant.
  • Control and instrumentation system is integrated in the process to enable remote control of process.
  • Stainless teel fabrication for vessels and structures was carried out in isolated stainless steel bay
